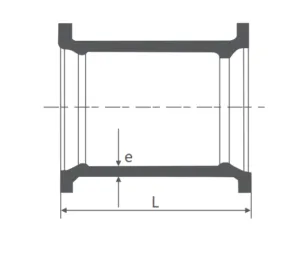

Bolted Gland Collar Class K 12
|
Diámetro nominal DN(mm) |
e | L | Masa
(kg) |
|
80 |
7.0 | 230 | 12.2 |
|
100 |
7.2 | 230 |
12.9 |
| 150 | 7.8 | 260 |
19.7 |
|
200 |
8.4 | 290 | 27.5 |
|
250 |
9.0 | 355 |
36.0 |
| 300 | 9.6 | 360 |
48.0 |
|
350 |
10.2 | 380 | 62.0 |
|
400 |
10.8 | 400 | 76.5 |
| 450 | 11.4 | 410 |
91.0 |
| 500 | 12.0 | 425 |
96.0 |
| 600 | 13.2 | 450 |
130.0 |
